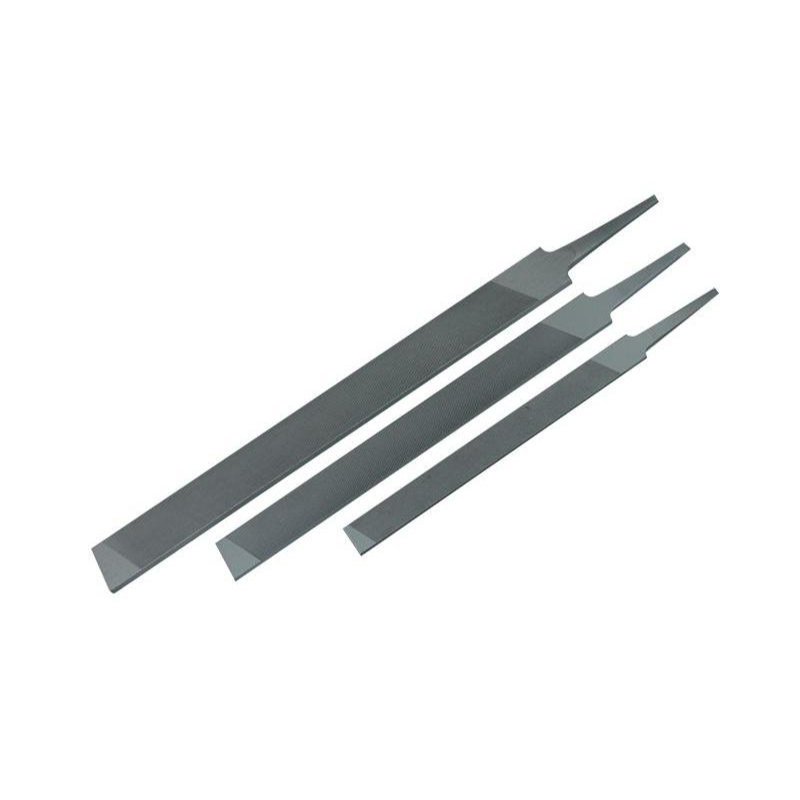

The Mill File is a versatile flat hand file widely used for metal shaping, deburring, and surface finishing. Featuring a single-cut tooth pattern, it provides smooth and controlled cutting performance suitable for a wide range of metalworking applications.
Manufactured from high-quality carbon steel with precise heat treatment, mill files are commonly used in machinery maintenance, metal fabrication, workshops, construction sites, and general repair work.
Share:
Product Details
Mill File is the cutting and grinding hand tool manufactured by carbon tool steel T12 (1095, Cr6, 130Cr2) with 1.15%-1.25% carbon content. HRC60-65.
It is suitable for cutting blades Grinding repair and plane correction of metal workpieces.
It is produced according to GB 5803-5815, GB/T 806, GGG-F-325b and DIN6261-7285.
The file needs to wear goggles and safety gloves when using the file.
During file processing, both hands press the file on the workpiece horizontally and forward. The file cannot be processed in the reverse direction and cannot be used to process super-hard materials.
After the file is used, it is necessary to clean the surface of the iron and store it safely in a dry tool bag.
Technical Specifications
|
Parameter |
Description |
|
Product Type |
Mill File |
|
Shape |
Flat |
|
Length |
6" / 8" / 10" / 12" |
|
Cut Type |
Single Cut |
|
Material |
Carbon Steel |
|
Hardness |
HRC 60-65 |
|
Handle Type |
Tang / Handle |
|
Application |
Steel, Iron |
|
OEM / ODM |
Supported |

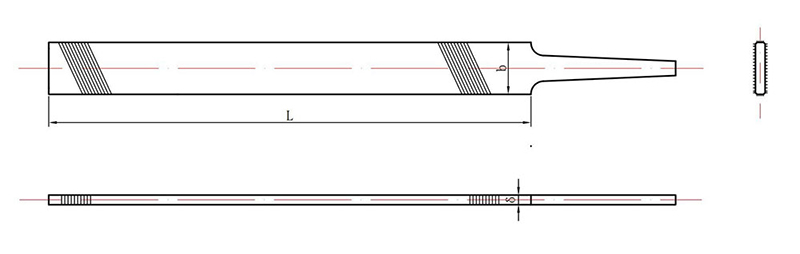

| Inch | mm(L) | mm(d) | mm(δ) |
| 6" | 150 | 14.9 | 2.4 |
| 8" | 200 | 19.7 | 3.2 |
| 10" | 250 | 24.4 | 3.9 |
| 12" | 300 | 29.1 | 4.6 |
Key Features

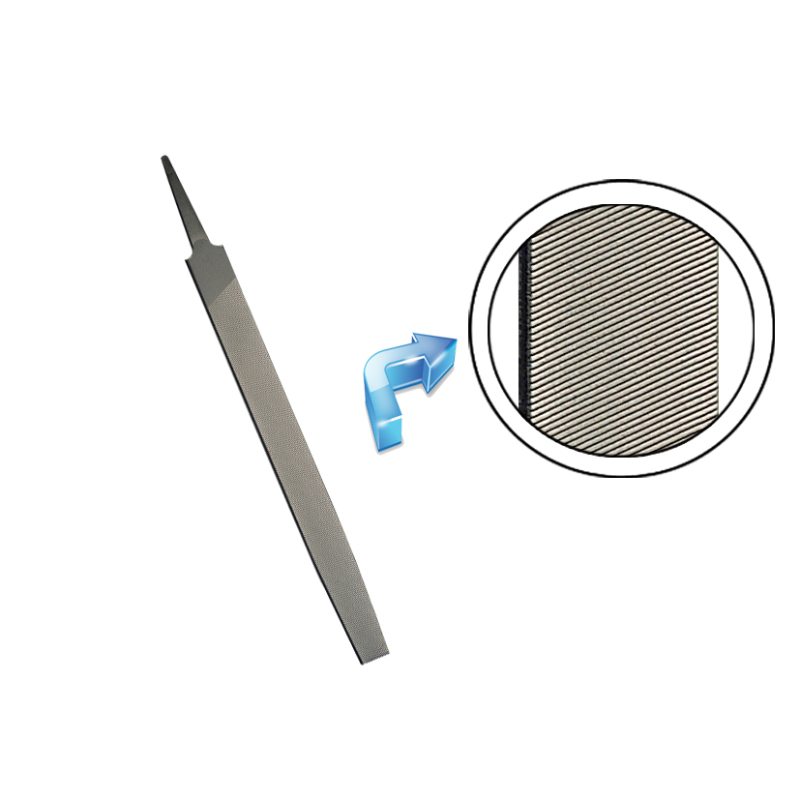

Smooth single-cut teeth
Flat profile for surface leveling
Durable and wear-resistant steel
Easy to control and operate
Applications
Metal surface finishing
Deburring and edge smoothing
Machinery and tool maintenance
General workshop tasks
Why Choose Our Mill Files
Consistent tooth geometry
Stable quality control
Complete size range
OEM support available
Advantages
Clean and uniform surface results
Suitable for multiple industries
Long service life
Cost-effective tool solution
