Hand Files are traditional manual tools used for shaping, smoothing, and finishing various materials. They are essential for general workshop tasks, maintenance, and repair operations.
Share:
Product Details
Hand Files is the cutting and grinding hand tool manufactured by carbon tool steel T12(1095,Cr6,130Cr2) with 1.15%-1.25% carbon content. HRC60-65. It is suitable for cutting and grinding metal and hard non-metal article. It is produced according to GB 5803-5815, GB/T 806, GGG-F-325b and DIN6261-7285. The craft includes hot forging, grinding, cutting teeth, quenching, surface sandblasting.
Technical Specifications
| Product Type | Hand File | Hardness | HRC 60-65 |
| Shapes | Hand | Application | Metal, Wood |
| Cut Type | Double | Standard | DIN / GB |
| Length | 4"/ 6"/ 8" / 10"/ 12"/ 14"/16"/18" | OEM / ODM | Supported |
| Material | Carbon Steel |
GB

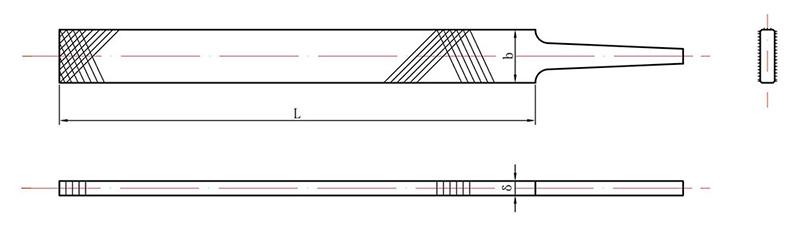

| Size(L) | Width(b) | Thickness(δ) | |
| Inch | mm | mm | mm |
| 4" | 100 | 11.5 | 2.6 |
| 6" | 150 | 15.5 | 3.8 |
| 8" | 200 | 19.2 | 4.3 |
| 10" | 250 | 23.2 | 5.0 |
| 12" | 300 | 27.2 | 6.0 |
| 14" | 350 | 31.2 | 6.8 |
| 16" | 400 | 35.2 | 7.8 |
| 18" | 450 | 35.2 | 7.8 |
DIN
| Size(L) | Width(b) | Thickness(δ) | |
| Inch | mm | mm | mm |
| 4" | 100 | 11.8 | 2.3 |
| 6" | 150 | 16 | 3.8 |
| 8" | 200 | 19.8 | 4.8 |
| 10" | 250 | 25.2 | 6.2 |
| 12" | 300 | 29.8 | 6.3 |
| 14" | 350 | 34.8 | 7.3 |
| 16" | 400 | 39.2 | 8.8 |
Key Features
Reliable and easy to use
Suitable for various materials
Long service life
Applications

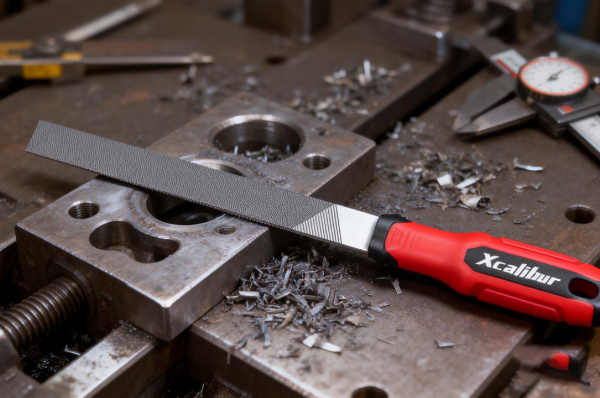

General filing tasks

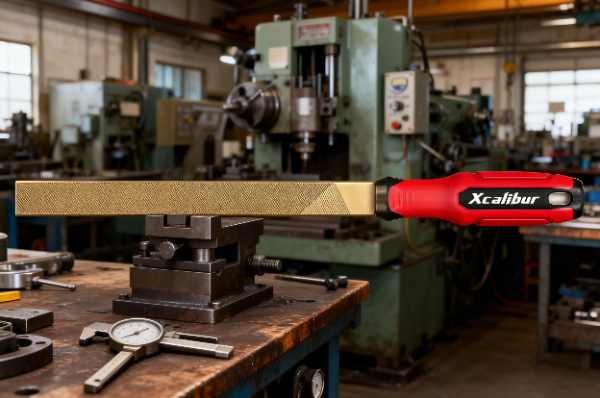

Maintenance and repair

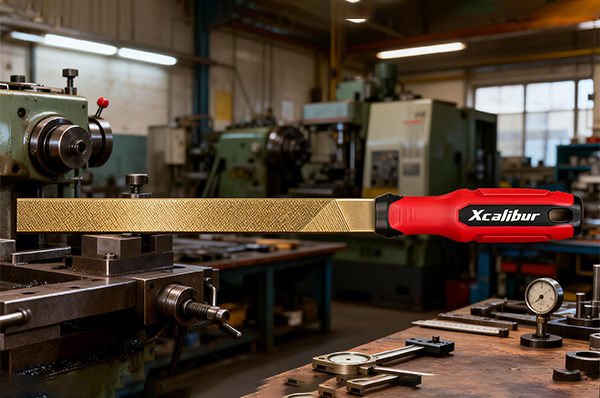

Workshop fitting
Why Choose Our Hand Files
Complete selection available
Competitive factory pricing
Advantages
Simple operation
Wide adaptability
80 Years of Manufacturing Excellence· Trusted by Global Clients· One-Stop File Solutions
