Flat Files are general-purpose hand files designed for shaping, smoothing, and finishing flat surfaces. They are widely used in metalworking, woodworking, maintenance, and repair applications.
Manufactured from high-quality carbon steel with precision-cut teeth, flat files provide efficient material removal and stable performance.
Share:
Product Details
The flat file is a metal cutting and grinding hand tool. It is made of carbon tool steel T12 (1095, Cr06, 130Cr2) with a carbon content of 1.15%-1.25%. The product hardness is HRC60-65. It is suitable for metal and hard Cutting and grinding of non-metallic objects. It is produced in accordance with GB 5803-5815, GB/T 806, American standard GGG-F-325b, and European standard DIN6261-7285. The products are produced through processes such as hot forging, grinding, tooth cutting, quenching, and surface sandblasting.
Technical Specifications
| Product Type | Flat File | Hardness | HRC 60-65 |
| Shape | Flat | Application | Metal, Wood |
| Cut Type | Double Cut | Standard | DIN / GB |
| Length | 4" / 6" / 8" / 10" / 12"/ 14"/ 16"/18" | OEM / ODM | Supported |
| Material | Carbon Steel |
GB

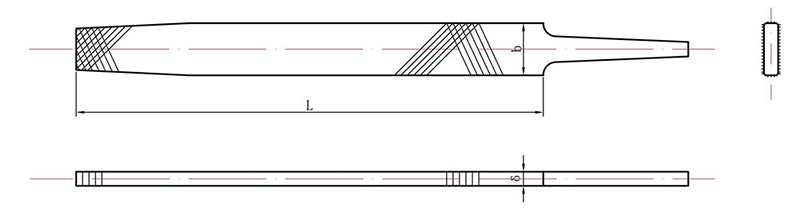

| Size(L) | Width(b) | Thickness(δ) | |
| Inch | mm | mm | mm |
| 4" | 100 | 11.5 | 2.6 |
| 6" | 150 | 15.5 | 3.8 |
| 8" | 200 | 19.2 | 4.3 |
| 10" | 250 | 23.2 | 5.0 |
| 12" | 300 | 27.2 | 6.0 |
| 14" | 350 | 31.2 | 6.8 |
| 16" | 400 | 35.2 | 7.8 |
| 18" | 450 | 35.2 | 7.8 |
Key Features
Large working surface
Uniform tooth distribution
Suitable for roughing and finishing
Applications

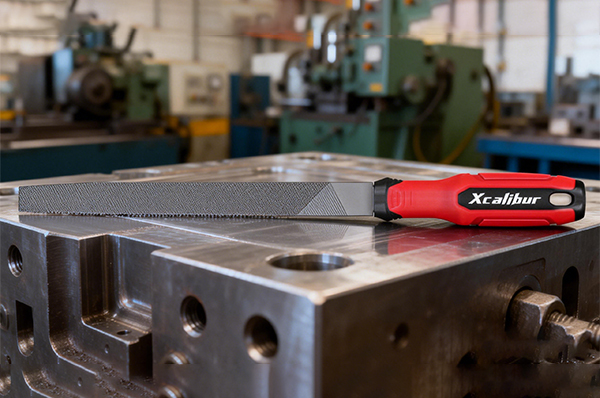

Flat surface finishing

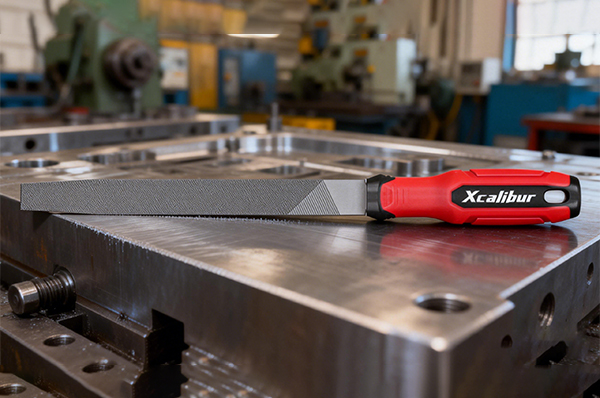

Edge shaping

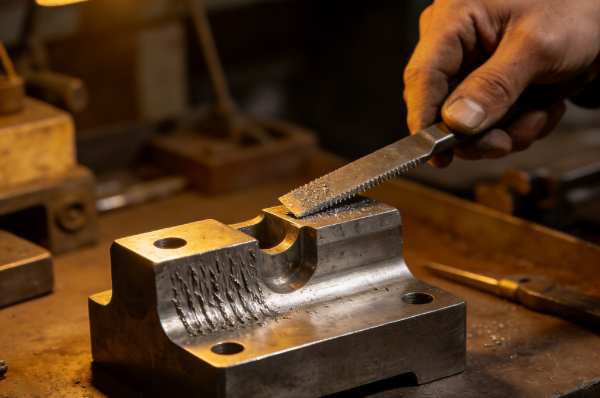

General workshop use
Why Choose Our Flat Files
Consistent quality
Multiple cut options
OEM customization available
Advantages
High efficiency
Easy control
Wide application range
