产品详情
国标尺寸

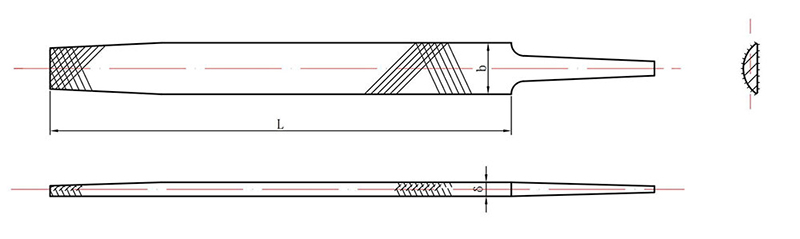

| 规格 | 宽度b /mm | 厚度δ/mm | 齿形 | 货号 | |
| 100 | 4″ | 11.5 | 3.2 | 1 | 0113-100-1 |
| 2 | 0113-100-2 | ||||
| 3 | 0113-100-3 | ||||
| 150 | 6″ | 16 | 4.3 | 1 | 0113-150-1 |
| 2 | 0113-150-2 | ||||
| 3 | 0113-150-3 | ||||
| 200 | 8″ | 19.7 | 5.5 | 1 | 0113-200-1 |
| 2 | 0113-200-2 | ||||
| 3 | 0113-200-3 | ||||
| 250 | 10″ | 23.2 | 6.5 | 1 | 0113-250-1 |
| 2 | 0113-250-2 | ||||
| 3 | 0113-250-3 | ||||
| 300 | 12″ | 27.2 | 7.5 | 1 | 0113-300-1 |
| 2 | 0113-300-2 | ||||
| 3 | 0113-300-3 | ||||
| 350 | 14″ | 31.2 | 8.3 | 1 | 0113-350-1 |
| 2 | 0113-350-2 | ||||
| 3 | 0113-350-3 | ||||
欧标尺寸
| 规格 | 宽度b /mm | 厚度δ/mm | 齿形 | 货号 | |
| 100 | 4″ | 11.5 | 3.2 | 1 | 0122-100-1 |
| 2 | 0122-100-2 | ||||
| 3 | 0122-100-3 | ||||
| 150 | 6″ | 16 | 4.3 | 1 | 0122-150-1 |
| 2 | 0122-150-2 | ||||
| 3 | 0122-150-3 | ||||
| 200 | 8″ | 19.7 | 5.5 | 1 | 0122-200-1 |
| 2 | 0122-200-2 | ||||
| 3 | 0122-200-3 | ||||
| 250 | 10″ | 24.8 | 6.8 | 1 | 0122-250-1 |
| 2 | 0122-250-2 | ||||
| 3 | 0122-250-3 | ||||
| 300 | 12″ | 29.8 | 8.3 | 1 | 0122-300-1 |
| 2 | 0122-300-2 | ||||
| 3 | 0122-300-3 | ||||
| 350 | 14″ | 34.8 | 9.8 | 1 | 0122-350-1 |
| 2 | 0122-350-2 | ||||
| 3 | 0122-350-3 | ||||
